Blue AudioCodes Fax ATA

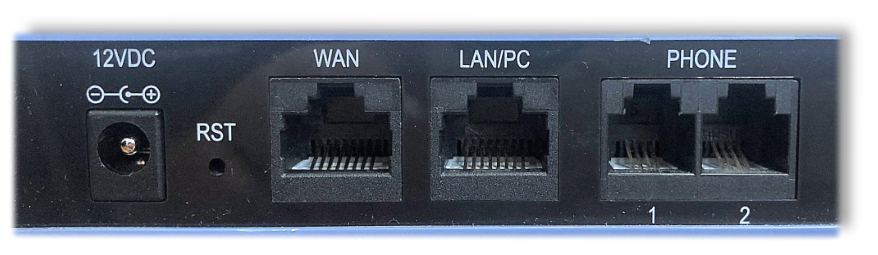

1. Plug in enclosed power cord to the 12VDC port on the back of the ATA.


1. Connect the WAN port on the back of the ATA to an Ethernet cable that connects to the internet (to the wall or a switch, etc.).  The LAN/PC port can be left open.
2. Plug one end of a telephone phone cable to the fax machine and the other end into Phone Port 1 for the first fax machine, Phone Port 2 for the second fax machine (if applicable).

Lights on front should be green within about 10 minutes.  Send and receive test faxes from the fax machine.
