Pair Handset with Yealink W60B
How to register a Yealink handset with a single W60B or multiple base stations
The following steps may also apply to Yealink models W52B and W80B.
With a Single W60B

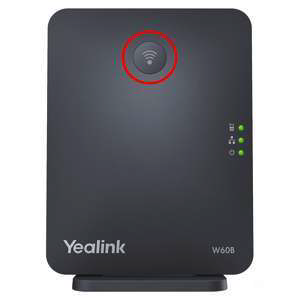

Hold down the Connect button on the base until the top light of the three green lights starts blinking.

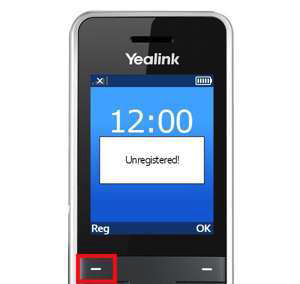

On the handset, there should be a message that states "Unregistered!". Press the button on the bottom left of the screen labeled Reg.
With the base in pairing mode, the handset will search for it, and attempt to connect automatically.
Upon success, the phone will display a message confirming successful registration.
With Multiple Base Stations

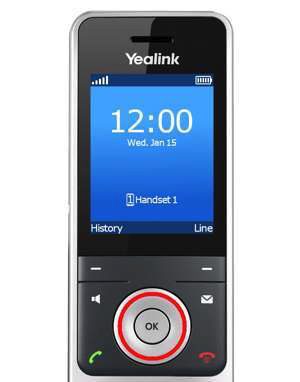

Press the OK button on the handset to open the phone's main menu.

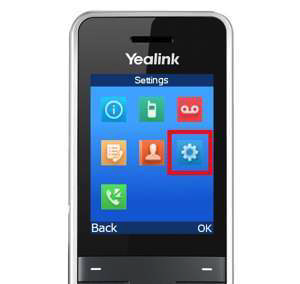

Navigate to Settings and press OK.
Settings

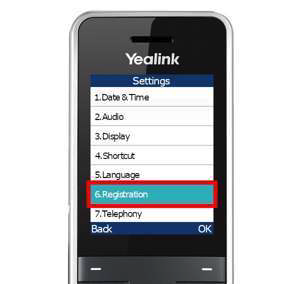

In settings, navigate down to Registration (or press 6 on the dialpad).

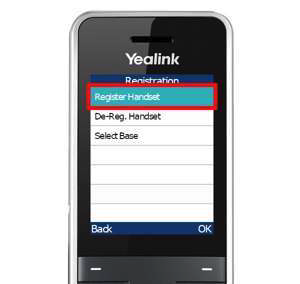

Navigate to Register Handset.
On the Yealink Base, hold down the Connect button until the top green light starts flashing.

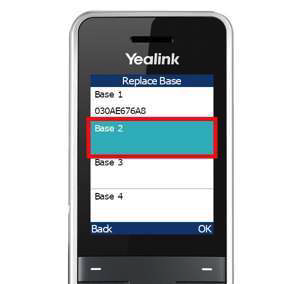

Select the next empty Base #.

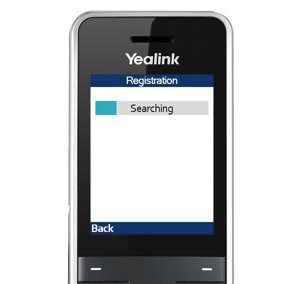

Wait for the Searching dialog to complete.

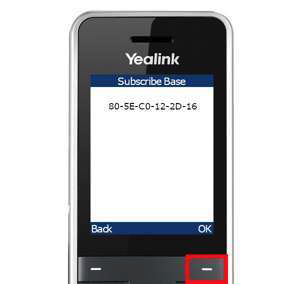

Press OK on the Subscribe Base screen, followed by your pin (default is 0000).

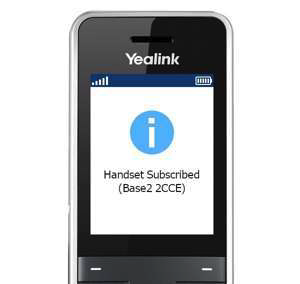

You should now be paired with the additional base.
