Adding Additional Line keys to a Poly(com) Phone

Adding Additional Line keys to a Poly(com) Phone

Introduction

There are times when you need additional buttons or "appearances" of your own line to better manage calls or handle more calls.  Adding additional linekeys is just a matter logging into the phones GUI or changing the parameter in the phone's physical Administrative settings

Procedure

Via Settings on Physical Device

Please watch this video (start from the 30 second mark)

Via Web GUI

Access the phone’s Web Interface:

  1. Find the IP address of the phone (usually from the phone’s settings under Menu > Status > Network).
  2. Enter the IP address into a browser (e.g., http://192.168.1.100).
  3. Log in. Default credentials are often:
    1. Password: 773771 (unless changed)

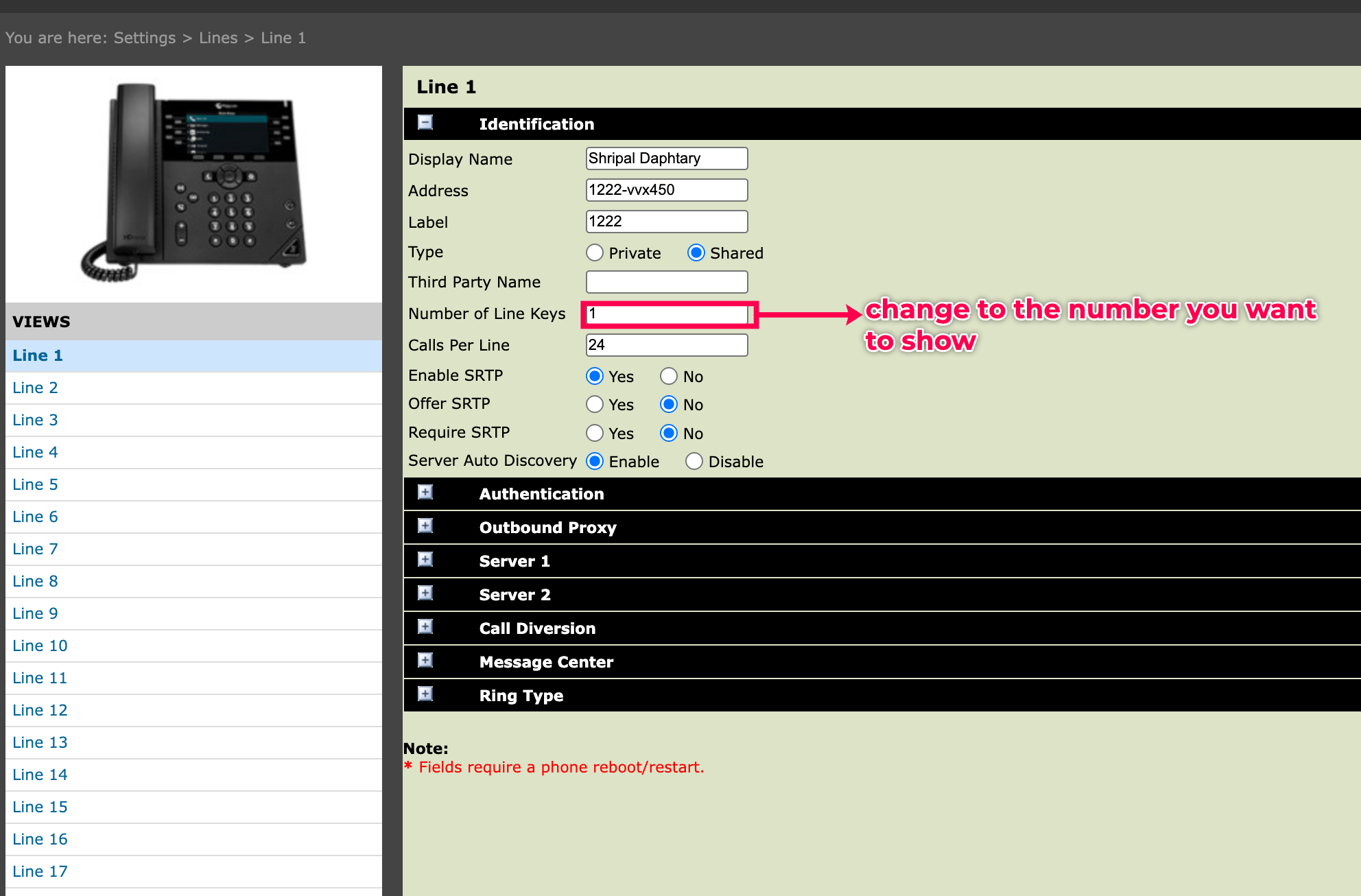

  4. Navigate to the line key settings:
    1. Go to: Settings > Lines
    2. Look for a section labeled like “Number of Line Keys” or “Line Key Configuration”
    3. Set the number of line keys -- For the desired line (e.g., Line 1), set the number of appearances or shared line keys to whatever number you require.
  5. Save and reboot the phone if required.
